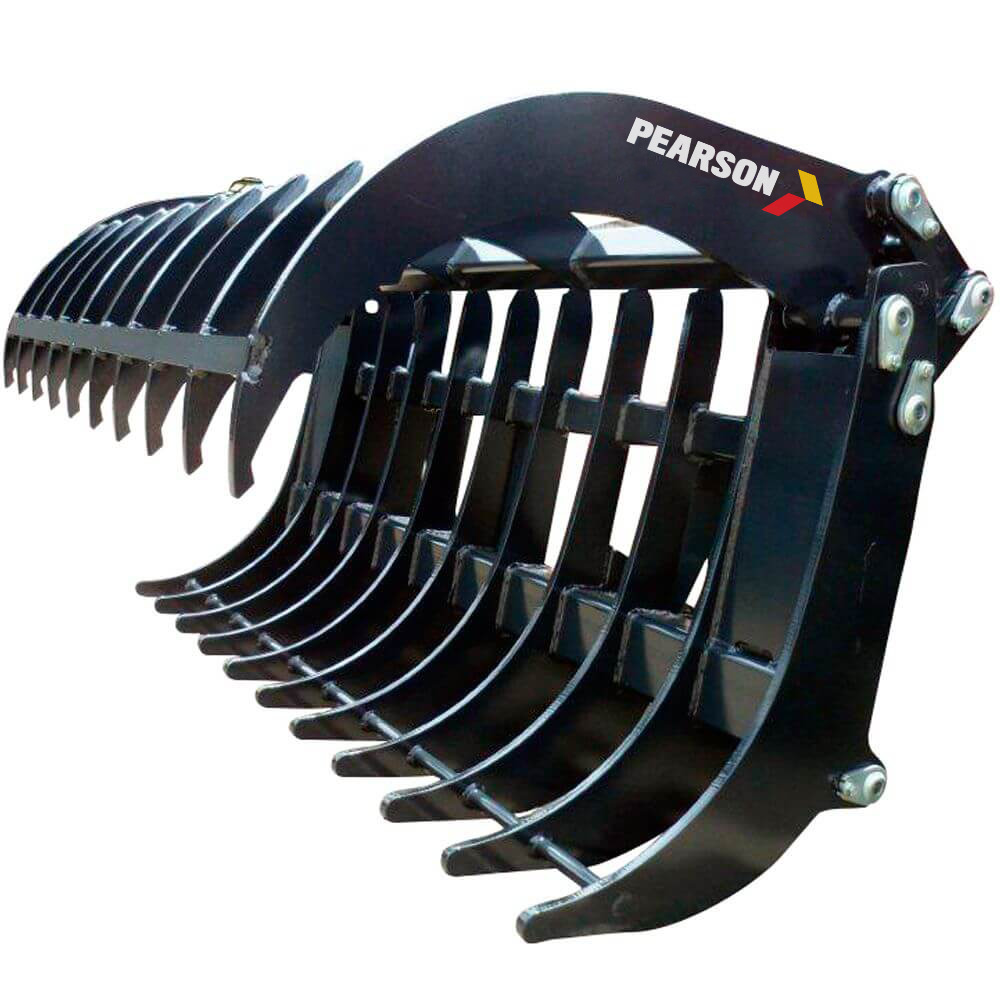

Heavy Duty Grapple

$13,530$17,690 +GST

None Pearson Slate Grey John Deere Green
Categories: , SKU: N/A


Built tough to last, Pearson heavy duty grapples are made using Bisalloy – a high tensile steel with a yield strength 3 times greater than mild steel and excellent wear resistance. All surfaces that touch the load are fully bisalloy armoured meaning you get a longer life from your investment. Heavy wall RHS locks the tines together creating a rigid subframe allowing the heavy duty grapple to lift uneven loads without twisting.

The heavy-duty grapple comes equipped with thick 16mm bisalloy tines opening to an extra-wide 1600mm.A unique feature of the heavy duty grapple is the toggle action between the ram and top grab. This allows for a greater opening and more importantly, increases the power of the pinch when closing on heavy loads. You can be sure of a solid grab through the whole close cycle. The heavy duty grapple is suitable for all tractors from 80hp, also excavators, telehandlers and wheel loaders.

Backplates available for all loaders.

35mm pins for sturdy construction.

Replaceable Teflon bushes to prevent wear and tear on key componentry.
