20-40 Front End Loader

  • Twin crowd
  • All cylinders double acting
  • Port relief incorporated in control valve for protection against overloading
  • Large range of implements

OPTIONS

  • Third service kit with control in joystick handle
  • Hydraulic multi coupler four port with electrical circuit for third service
  • Electronic proportional control
  • Shock absorption system
  • Self levelling
  • Hydraulic locking on quickhitch
  • Third service two port multi coupler or QRCs on quickhitch
Category:

Description

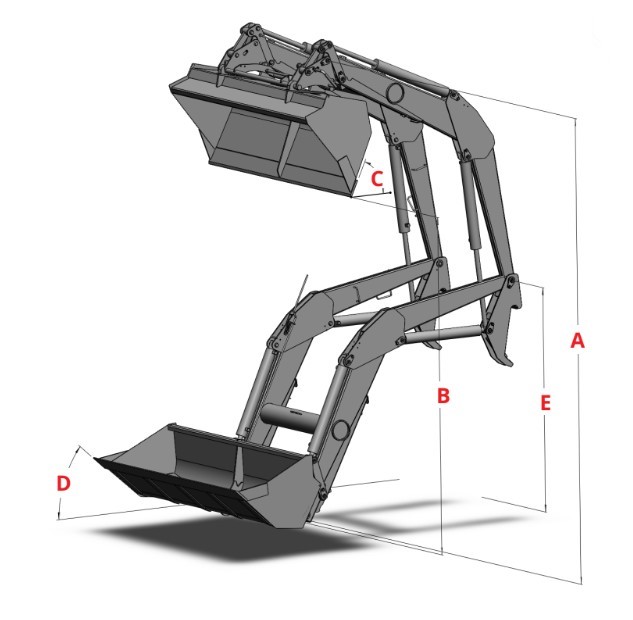

LOADER TYPE20-4020-40 SL
'A' maximum lift height3976mm3976mm
'B' clearance with bucket dumped3140mm3140mm
'C' maximum dumping angle55º55º
'D' roll back angle45º45º
'E' digging depth160mm160mm
'F' pivot point height19411941
Lift ram3"3"
Crowd ram3"3"
Slave ram3"3"
Suitable horsepower100 + hp100 + hp

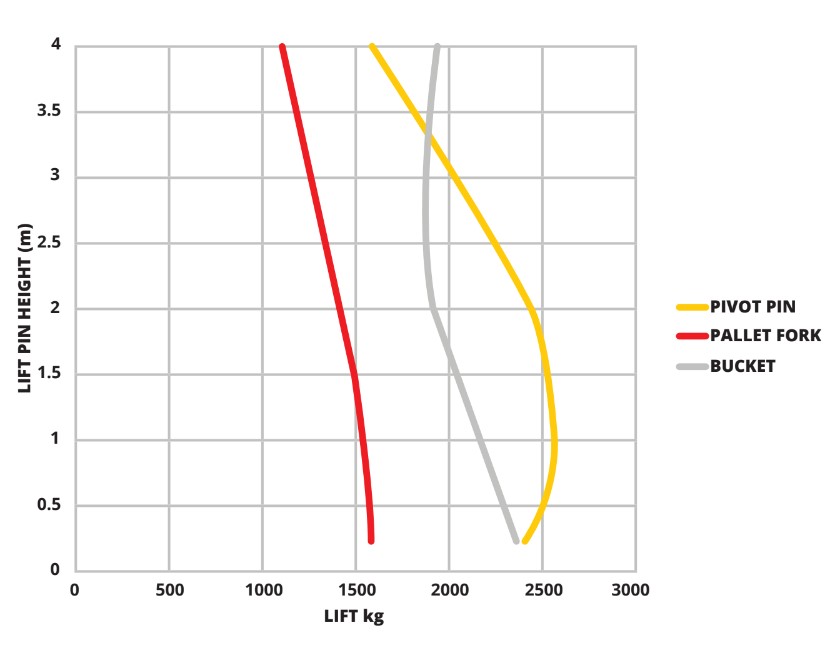

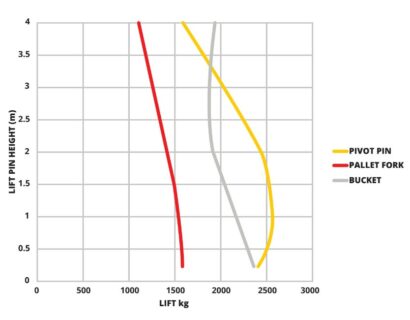

Calcs based on oil pressure (psi)2700psi2700psi
