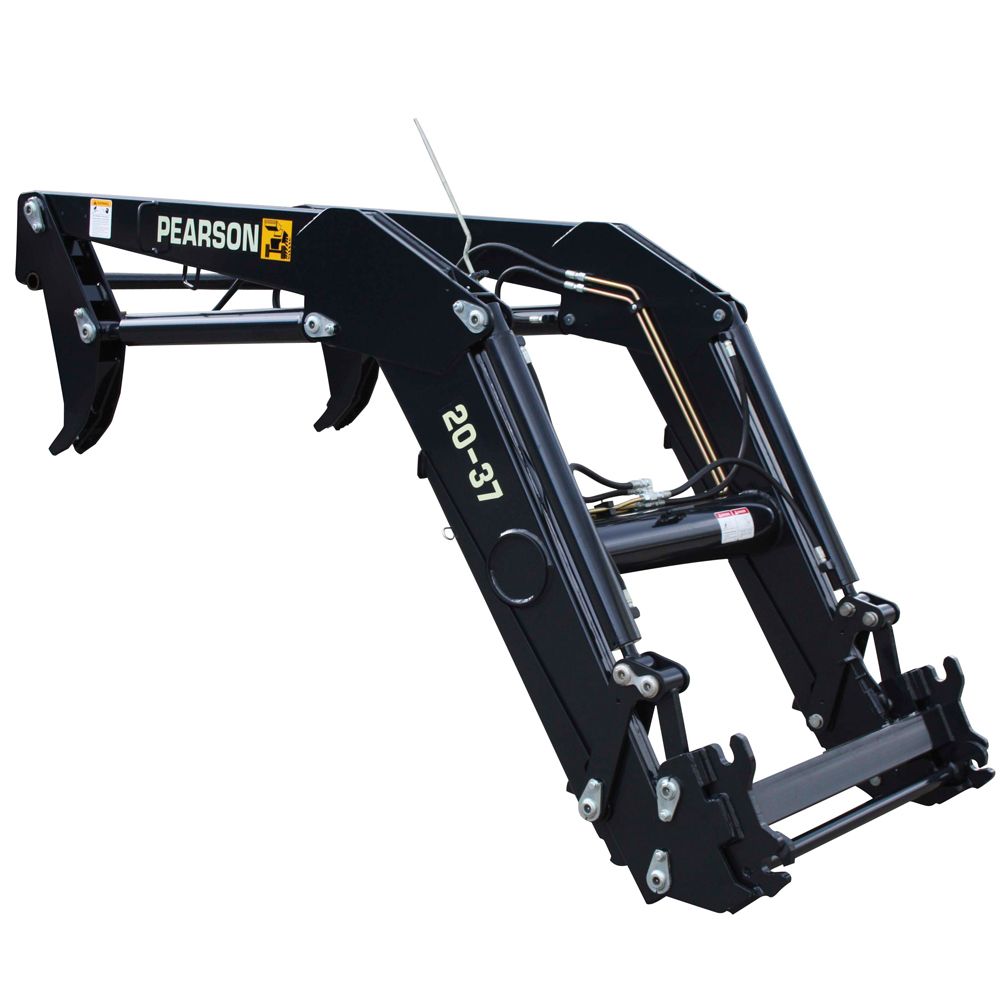

20-37 Front End Loader

  • Twin crowd
  • All cylinders double acting
  • Port relief incorporated in control valve for protection against overloading

OPTIONS

  • Third service kit with control in joystick handle
  • Hydraulic multi coupler four port with electrical circuit for third service
  • Electronic proportional control
  • Shock absorption system
  • Self levelling
  • Hydraulic locking on quickhitch
  • Third service two port multi coupler or QRCs on quickhitch
Category:

Description

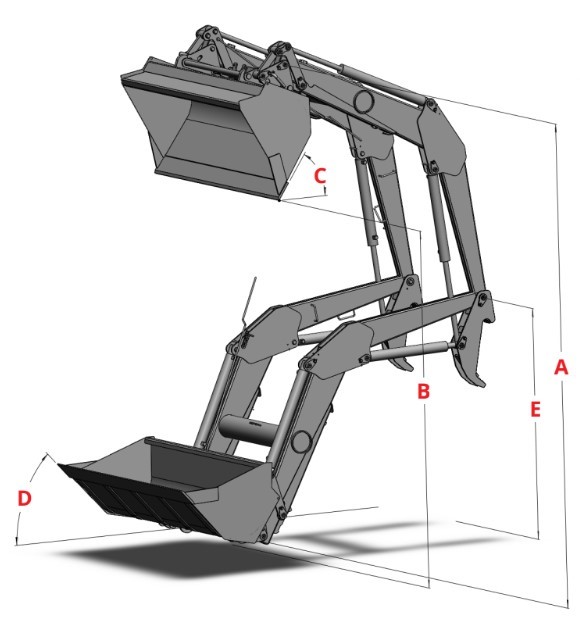

LOADER TYPE20-3720-37 SL
'A' maximum lift height3706mm3706mm
'B' clearance with bucket dumped2868mm2868mm
'C' maximum dumping angle55º55º
'D' roll back angle45º45º
'E' digging depth160mm160mm
'F' pivot point height17431743
Lift ram3"3"
Crowd ram2.5"2.5"
Slave ram2.5"2.5"
Suitable horsepower60-100hp60-100hp
Calcs based on oil pressure (psi)2700psi2700psi

Pearson 20-37 Wedgelock Loader test.

Reviewed by Farm Trader.

Jaiden Drought from Farm Trader tested Pearson’s new and improved 20-37 loader, and is impressed by its ease of use and impeccable finish.

Download Article (PDF)
